IMCON-Intec s.c. - SPS-25M Switch-Mode Power Supply

MODEL		OUTPUTS
MODEL		V₁ / I₁	V₂ / I₂	V₃ / I₃
SPS-25M	5.5	5 V / 5A (max 7A)	Out of production replaced by SPS-25MD series
	12.2	12 V / 2A (max 3A)
	24.1	24 V / 1A (max 1,8A)
	48.1	48 V / 0,7A (max 1A)
MPS-25M	2/1	12 V / 0 - 2 A	-12 V / 0.5 A
MPS-25M	2/2	15 V / 0 - 2 A	-15 V / 0.5 A
MPS-25M	3/1	5 V / 0 - 3 A	12 V / 0.5 A	-12 V / 0.5 A
MPS-25M	3/2	5 V / 0 - 3 A	15 V / 0.5 A	-15 V / 0.5 A

SPECIFICATIONS

	Input voltage	90 - 260 V AC 40 - 60 Hz or 110 - 380 V DC
	Inrush current	< 15 A
	Output power continuous load temporary load	< 30 W < 50 W
	Operating temperature range	0 do +50 °C
	Ripple & noise (30 MHz band width)	< 1 % p-p
	Line regulation (all outputs)	< 0,5 %
	Load regulation (all outputs)	< 0,5 %
	Efficiency	75 - 80 %
	EMI -RFI EN55022 Level B (VDE871 Class B, FCC Class B)
	Overload protection , overvoltage protection
	Thermal protection.
	Safety Full compliance to: EN 60950, IEC950,UL1950
	OPTIONS : SPS-25M-x.x AWB - for buffer connection with small rechargable lead-acid battery (usually 12V or 24V/7 - 12 Ah) with battery discharge protection relay
	Declaration of Conformity Verification Certificate issued by BBJ-SEP (Quality Research Bureau - Association of Polish Electrical Engineers).

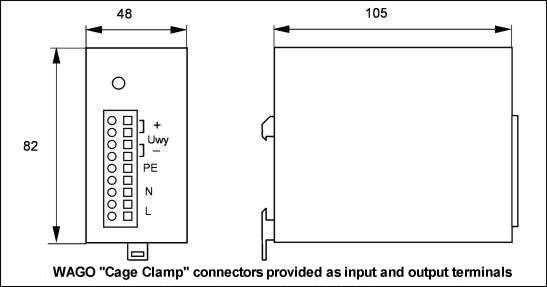

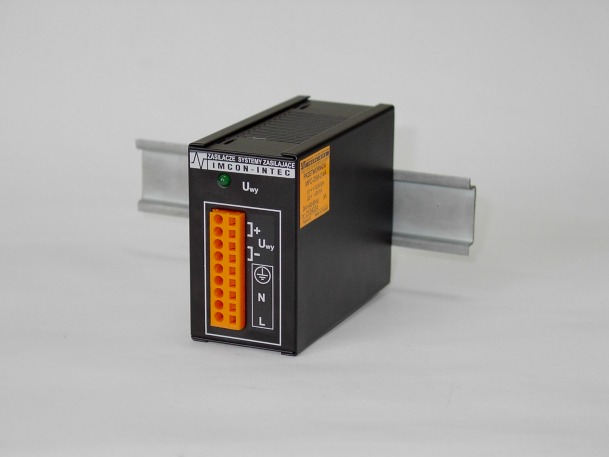

SPS-25M power supply (29 kB)	SPS-25M power supply dimensions (15 kB)
click to enlarge.
