SPS-25S
MPS-25S
Low power industrial switch-mode power supplies

Seria mocy 30 W

» Available models «

» Specifications «

» Photo & dimensions «

AVAILABLE MODELS

MODEL		OUTPUTS
MODEL		V₁ / I₁	V₂ / I₂	V₃ / I₃
SPS-25S	5.5	5 V / 5A (max 7A)
	12.2	12 V / 2A (max 3A)
	24.1	24 V / 1A (max 1,8A)
	48.1	48 V / 0,7A (max 1A)
MPS-25S	2/1	12 V / 0 - 2 A	-12 V / 0.5 A
MPS-25S	2/2	15 V / 0 - 2 A	-15 V / 0.5 A
MPS-25S	3/1	5 V / 0 - 3 A	12 V / 0.5 A	-12 V / 0.5 A
MPS-25S	3/2	5 V / 0 - 3 A	15 V / 0.5 A	-15 V / 0.5 A

SPECIFICATIONS

	Input voltage	90 - 260 V AC 40 - 60 Hz or 110 - 380 V DC
	Inrush current	< 15 A
	Output power constant load temporary load	< 30 W < 50 W
	Operating temperature range	0 do +50 °C
	Ripple & noise (30 MHz band width)	< 1 % p-p
	Line regulation (all outputs)	< 0,5 %
	Load regulation (all outputs)	< 0,5 %
	Efficiency	75 - 80 %
	EMI -RFI EN55022 Level B (VDE871 Class B, FCC Class B)
	Overload protection , overvoltage protection
	Thermal protection.
	Safety Full compliance to: EN 60950, IEC950,UL1950

SPS-25S-x.x AWB - for buffer connection with small rechargable lead-acid battery (usually 12V or 24V/7 - 12 Ah) with battery discharge protection relay

PHOTO & DIMENSIONS

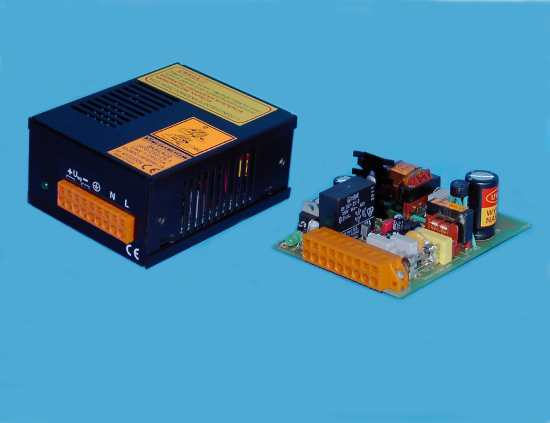

SPS-25S power supply (22 kB)

SPS-25S power supply dimensions

(18 kB)

click to enlarge.
