SPS-450PFC |
|
| » Available models « | » Specifications « | » Dimensions & Photo « |
| MODEL | OUTPUT | |
| V1 / I1 | ||
| SPS-450PFC | 24.18 | 24 V / 18 A |
| 48.9 | 48 V / 9 A | |
|
Input voltage |
90 - 260 V AC lub 110 - 380 V DC |
|
|
Power factor |
> 0.97 (EN 61000-3-2, Class D) |
|
|
Inrush current | < 30 A |
|
|
Output power (continuous load)
natural convection
forced air flow |
< 360 W
< 450 W |
|
|
Ambient temperature (at full load) | 0 °C - +50 °C |
|
|
Ripple & noise (p-p value, 30 MHz bandwidth) | < 1 % p-p |
|
|
Line regulation | < 1 % |
|
|
Load regulation | < 1 % |
|
|
Overload protection | current limit |
|
|
Overvoltage protection | double feedback loop |
|
|
Thermal protection | shut down |
|
|
Meets the following safety standards: EN 60950, IEC950, CSA-22-2- 950, UL1950 | |
|
|
OPTIONS :
|
|
| 450PFC series is designed and manufactured in co-operation with ABSOPULSE - Canada. | ||

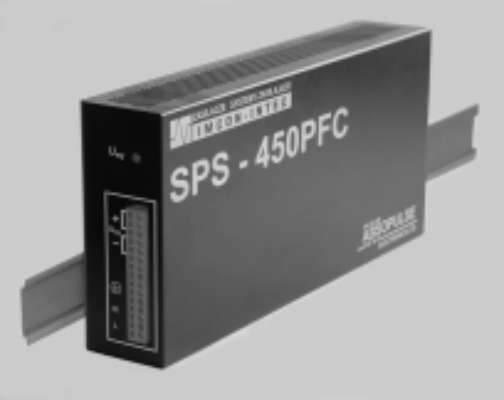

SPS-450PFC power supply ( 28 kB) |
SPS-450PFC dimensions ( 15 kB) |
