Rail  Mounting Set

"Rail Mounting Set"  is optional for idustrial power supplies ( 100SD,   200SD,  280SD and 240S series) and enables  using them as rail-mounting devices if necessary. Metal  angles included in the Mouting Set may be used also for installing industrial type power supplies on vertical surfaces (walls, assembly plates etc.)

Mounting  Set consists of two  angles  made of   2 mm thick steel sheet with several holes which fit to any of the power supply mentioned above. Rail clamps can be attached to the angles.  If  rail clamps are not used,  the  free  sides  of  angles may be attached to the assembly plate or any  vertical surface.  The following parts are included in the Mounting Set: 2 pcs. of  black painted steel angles, 2 pcs. of  rail clamps and 8 pcs. of  M4 screws with washers.  The Mounting Set is presented in the photograph below.



"Rail Mounting Set" components

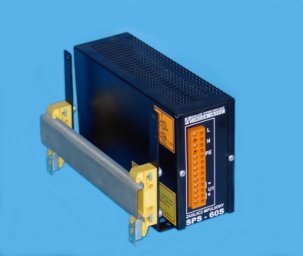

Examples of "Rail Mounting Set" usage

  200SD - 240S/280SD power supply                       100SD power supply
