SPS-240CS |
|
| » Available models « | » Specifications « | » Dimensions & Photo « |
| MODEL | OUTPUTS | |
| V1 / I1 | ||
|
SPS-240CS |
5.35 | 5 V / 35 A |
| 12.20 | 12 V / 20 A | |
| 24.10 | 24 V / 10 A | |
| 48.5 | 48 V / 5 A | |
|
Input voltage |
180 - 260 V AC or 240 - 380 V DC |
|
|
Output power | limited to 270 W |
|
|
Ambient temperature (at full load) | 0 °C - +50 °C |
|
|
Output ripple & noise (p-p value, 30 MHz bandwidth) | < 2 % |
|
|
Line regulation | < 0.5 % |
|
|
Load regulation | < 0.5 % |
|
|
Dielectric withstand
input - case
input - output output - case |
2100 V DC
5300 V DC 500 V DC |
|
|
Clearance input - output input - case |
> 8 mm > 4 mm |
|
|
Short-circuit & overload protection | |
|
|
Thermal protection | |
|
|
Designed to meet international safety and electromagnetic compatibility standards | |
|
|
OPTIONS :
|
|
|
|
Different output voltage/current configurations available upon request | |
|
|
|

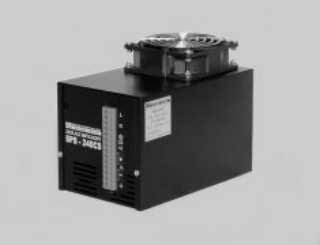

| click to enlarge | |
